TE8590C

TEDDERS

Call Us

Extended Warranty

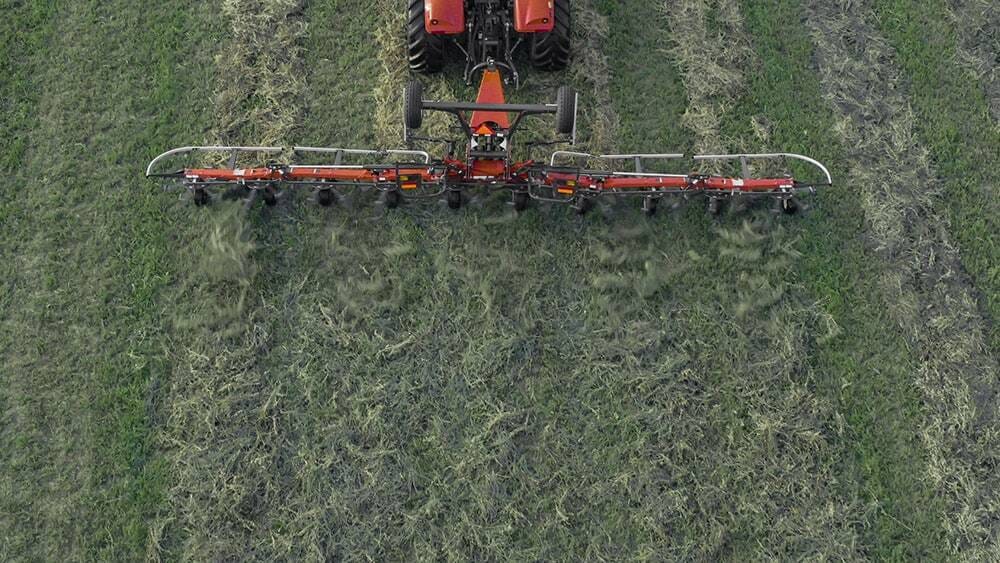

The premier tedder experience is easily found in the Kubota TE8590C and its 29’ 6” working width makes haymaking efficient! The tedder’s Super-C tines spread the crop in an inverted fashion, meaning the lower crop is placed on top, providing you with an even dry down. Kubota’s commitment to durability is showcased in the tedder’s rotor gearbox and chassis, and with a transport width of just 9’ 7”, you’ll swear the TE8590C is your new best friend.

Special Offers

  • Implement Stand Alone Financing

    Stand Alone Financing Installment Program

    Implement Stand Alone Financing
  • Farmer Veteran Coalition Rebate

    Customer instant rebate for Farmer Veteran Coalition members.

    Farmer Veteran Coalition Rebate
  • TEDDER SERIES

    Up to 0% A.P.R. for 48 Months on your new Kubota TE Series!

    TEDDER SERIES
Easy Transport

Easy Transport

Kubota's TE8590C is easily converted from working to transport position. Wheels are fixed during transport for smooth and stable running. This can all be done from the tractor seat, only requiring on 1 set of hydraulic outlets. Model is approved for 25 mph.

Super-C Tine

Super-C Tine

The symmetric Kubota Super-C tines efficiently pick up the crop from two different areas. As it spreads the crop, the crop is inverted so the lower crop is placed on the top, giving a more even dry down. The crop is then spread evenly across the width of the machine for consistent drying. These tines are made of 0.39" shot-peened spring steel. Our spring coil diameter has a 20% larger diameter than conventional designs. This increases each tine service life, even when tedding heavy, high moisture crops.

Rotor Gearbox

Rotor Gearbox

These Kubota tedder models have a maintenance-free, oil-immersed gearbox, which means less time required for servicing and more time in the field. The gearboxes are integrated into the frame, making them extremely durable. Because they are not part of the frame structure, but are mounted within the actual frame, the gearbox is relieved of frame stresses.

Large Working Widths

Large Working Widths

Even with large working widths, due to their trailed design these tedders are still ideal for lower horsepower tractors. This minimizes compaction and operating costs – certainly a great advantage in times of escalating fuel and labor costs.

  • TE6583T – 27'3"
  • TE8590C – 29'6"
  • TE8511T – 36’1”
  • TE10511C – 36'9"
TE8590C

TE8590C

HP

Specifications

Adjustment Of Spreading Angle

Standard

Cab Contr. Border Clearing System, Hydr.

Standard

Cab Contr. Border Clearing System, Mech.

N/A

Capacity Theor. Acres/h

N/A

Farm Line

Standard

Front Wheel (16x6.50-8)

Standard

Linkage Drawbar

N/A

Number Of Rotors

8

Number Of Tine Arms/ Rotors

7

Pro Line

N/A

Reduction Gearbox For Night Windrows

Optional

Storage Height Ft. (m)

12 ft 3 in

Tandem Axles

Optional

Three- Point, Tracking

N/A

Tine Adjustment System

N/A

Tires On Central Unit

N/A

Transport Length Ft. (m)

13 ft 10 in

Transport Width Ft. (m)

9 ft 7 in

Two- Point, Linkage Arms

Cat ll

Vibration Damper/ Integral Lock

N/A

Warning Panels

Standard

Warning Panels With Integr. Lighting

Standard

Weight Lbs. (kg)

3747 (1700)

Wheels (4)

N/A

Width, Working Position Ft.

31ft 0 in

Working Width Ft. (m)

29 ft 6 in
